DIY Solar-Powered Rain Barrel Irrigation System

Learn how we set up a DIY solar-powered rain barrel irrigation system from scratch! We love knowing we can harvest rainwater and reduce our water use. This post walks you through how we put our system together, including all of the supplies you need to set up a remote-controlled system designed to irrigate our two garden beds.

How to set up a DIY solar-powered rain barrel irrigation system from scratch

This spring we wanted to start a couple of garden beds. Primarily for leafy greens because I found that store-bought salad mixes were wilting within 48 hours—at best. I got such a great response from my first post I wrote on the website, so my wife sent me down a rabbit hole for today’s project—our DIY solar-powered rain barrel irrigation system.

Last summer my big project was setting up our DIY Smokeless Fire Pit. Brit was originally skeptical, but after the post did so well, she told me to run with my rain barrel irrigation system idea. And I was really keen on diving into another in-depth project.

After brainstorming with my chief creative consultant (Brittany) and choosing the rain barrel, she told me the rest was up to me. And I went all in.

In this blog post, I will walk you through the steps to construct your own rain barrel system, complete with a solar-powered water pump and remote. This project is an eco-friendly solution that not only saves you money and conserves water, but also helps you grow your own food. Let’s f**king go!

man with a nice physique standing on a ladder putting a solar panel on a roof
DIY solar-powered rain barrel irrigation system

Why use a rain barrel?

Rain barrels have been around for ages, capturing and storing rainwater. But why not take it a step further? That’s what I told Brit. She just wanted a rain barrel to fill up her watering can. But I don’t know when to quit and just had to take it up to 11.

By adding a solar-powered water pump to your setup, you can use THE POWER OF THE SUN to transport water to your garden beds! All without using the power grid or your muscles.

Adding a solar-powered rain barrel irrigation system offers a ton of advantages. Using collected rainwater instead of municipal water helps lower water costs and leads to long-term savings. But also it’s an environmentally conscious solution that reduces your reliance on the city’s water supplies. And it just makes you feel good.

The system supplies pure, natural water, which is better for your plants since it’s free of additives like chloride and fluoride. (We’re not crazy…but we swear rainwater is better for our plants.) A rainwater collection system with a solar-powered water pump also provides a self-sustaining and autonomous solution for your watering needs.

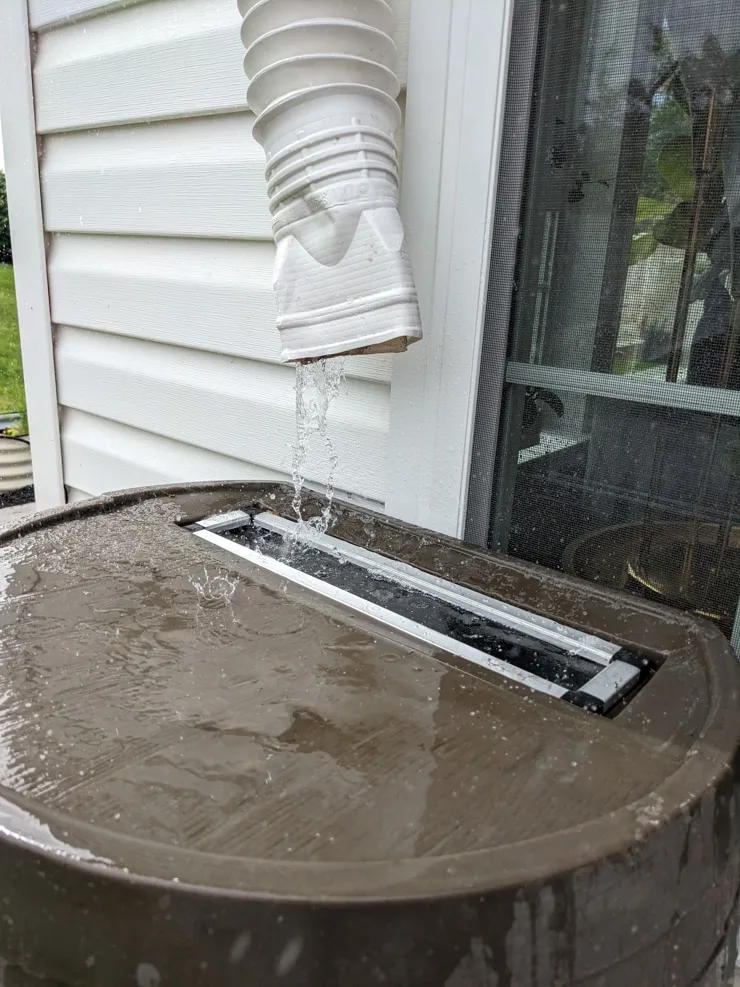

water flowing from a gutter into a rain barrel

Solar energy and how it helps with watering…

Honestly, this was our first foray into using solar energy. We don’t have solar panels on the house, so this was fun for me to dive in to. Solar energy is the perfect choice for powering your rainwater collection system. It’s a clean, plentiful, and renewable power source that generates zero greenhouse gas emissions.

Relying on solar energy will reduce your dependency on conventional electricity sources. While solar panels may have a higher initial cost than traditional power sources, they can yield substantial long-term savings. And it’s just cool using the sun to power your stuff.

Solar panels need minimal upkeep and can produce electricity for over 25 years. But also, by using solar energy, you can gain greater self-sufficiency and reduce grid reliance. See how self-sufficient I look installing our solar panel below?

good looking man installing a solar panel on a rain barrel irrigation system
lettuce growing in a garden

Here’s what we used…

(Affiliate links below; read more about those here)

So I began by browsing the internet for some inspiration. After discovering some clever concepts, I consulted my old buddy from engineering school, Headberg 5000, to discuss practicality. Let’s review some of the key components I settled on.

Note that you can tailor your system to any unique requirements and preferences by selecting the rain barrel size, water pump type, and irrigation system that best suits your garden beds.

mess of rain barrel irrigation system supplies on a table

Customization ideas…

As you gather materials for this DIY project, remember that it’s not always necessary to buy everything brand new. In fact, repurposing materials can be both eco-friendly and cost-effective. For instance, rather than purchasing a rain barrel, think about using a sizable container like a trash can or an old drum.

Often found on Facebook Free or super cheap. My wife is high maintenance though and had a specific rain barrel that she wanted to use. So we went with that (she is the chief creative director, after all). You can also reuse hoses and pipes from previous projects, as long as they’re in good shape and have the appropriate diameter.

Make sure you conduct enough research on your water pump to find what is most suitable for your setup. Take into account your garden’s size and water needs. You must also consider the sunlight availability in your region and search for a battery capable of storing sufficient energy to run the pump even in the absence of sunlight.

You might also want to find a pump with a timer or controller, which will assist you in regulating water flow to your garden beds. Selecting the proper materials for your solar-powered rain barrel irrigation system can significantly impact its performance.

rain barrel sitting in a yard

Table of contents

And this is a really long post—so I am including a table of contents below if you want to jump to a specific section.

Assembling the DIY solar-powered rain barrel irrigation system

I found it useful to conceptualize this project in three main parts: structural, mechanical, and electrical. So that’s how I am organizing this post. Hopefully it makes sense.

If you are like me, you’ll want to jump right into the electrical or mechanical aspects. But I discovered that determining placement and distances for the structural components early on is crucial.

So, decide where the rain barrel will be located, how you plan to elevate it, and the positioning of the mechanical tote relative to the barrel and garden beds. And, of course, make sure it’s near the gutter that will be diverting the rainwater.

Part 1: Structural considerations

Location

  1. Select the appropriate rain barrel. Pick one that meets your needs in terms of size and location. Take into account your area’s rainfall levels and the size of your garden. Obviously, a larger barrel holds more water, but it is also bulkier, harder to maneuver, and occupies more space. We used a 50 gallon flat-back barrel.
  2. Position your rain barrel near a downspout. Remove any grass and level the ground where you plan to seat the system.
  3. Next, elevate the barrel. I used cinder blocks and pavers to raise mine. I wanted it higher so I could still easily fill a watering can. But I also didn’t want it to obstruct the window more than necessary.
  4. Now consider the placement of the mechanical box. Visualize the tubing running from the barrel to the garden irrigation hoses. Understanding the pump’s one-way flow and determining its position inside the box is essential.

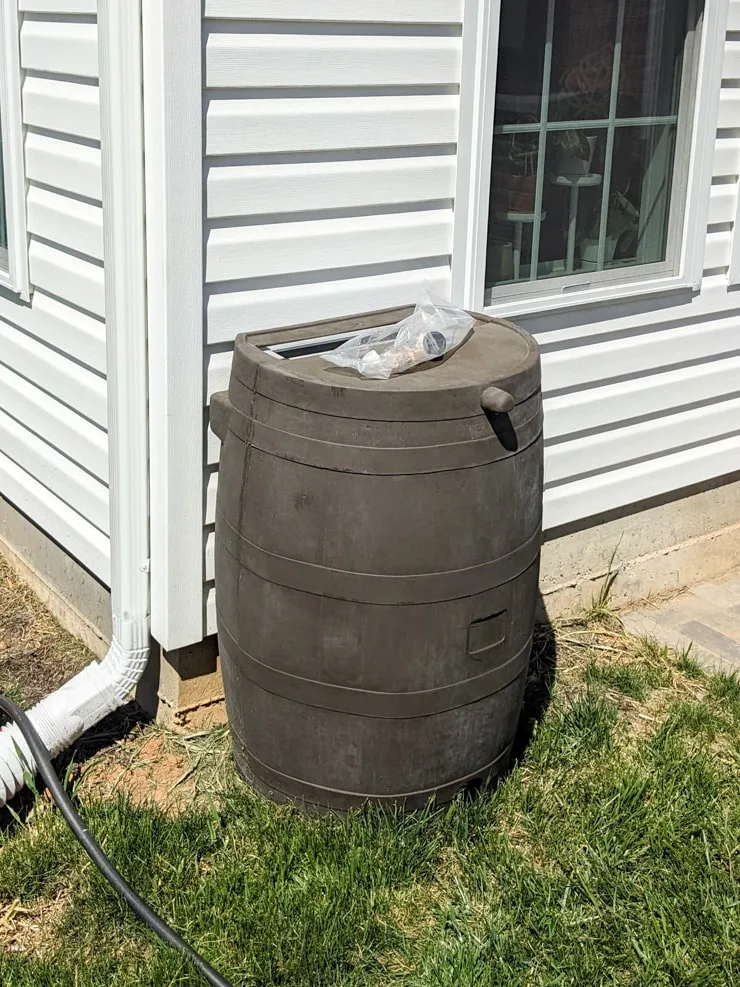

rain barrel against a house
leveling the ground for the rain barrel
rain barrel up on cinderblocks and pavers

Gutters

  1. Remove and replace gutter sections to direct rainwater to the barrel if needed. I used a single 90-degree elbow piece to navigate the house’s corner.
  2. Install a downspout diverter to funnel rainwater into the barrel. You may need to add a debris filter to the downspout diverter if your barrel doesn’t have any type of initial filtration.
right angle elbow gutter piece
attachment to divert water from the gutter to the rain barrel
gutter filter

Barrel setup

  1. Now on to the rain barrel setup. I suggest attaching a dual-spigot to the rain barrel. Since the pump hose will always be connected, an additional outlet for filling watering cans will be useful.
  2. Attach a garden hose inlet filter to the spigot leading to the water pump. Although my rain barrel’s top intake has a mesh filter for larger particles, I recommend extra filtration for the water entering the pump.
double spigot attached to a rain barrel

Part 2: Mechanical setup

Mechanical Box

I suggest using a 7-gallon plastic tote for your mechanical box. You could go bigger if your garden size requires a larger pump and battery.

  1. I began by securing a piece of scrap wood to the bottom of the tote to mount the pump. You could bolt it, but I used Flexseal rubber adhesive that I had on hand (THAT’S ALOTTA DAMAGE). Once attached to the bottom, mount the pump with four small screws.
  2. Note that when attaching the pump, take note of the pump’s flow direction. This will dictate which end of the tote you want the pump to sit.
  3. Drill or cut out two holes big enough for ½-inch tubing on the sides of the tote that align with the pump’s intake and outtake.

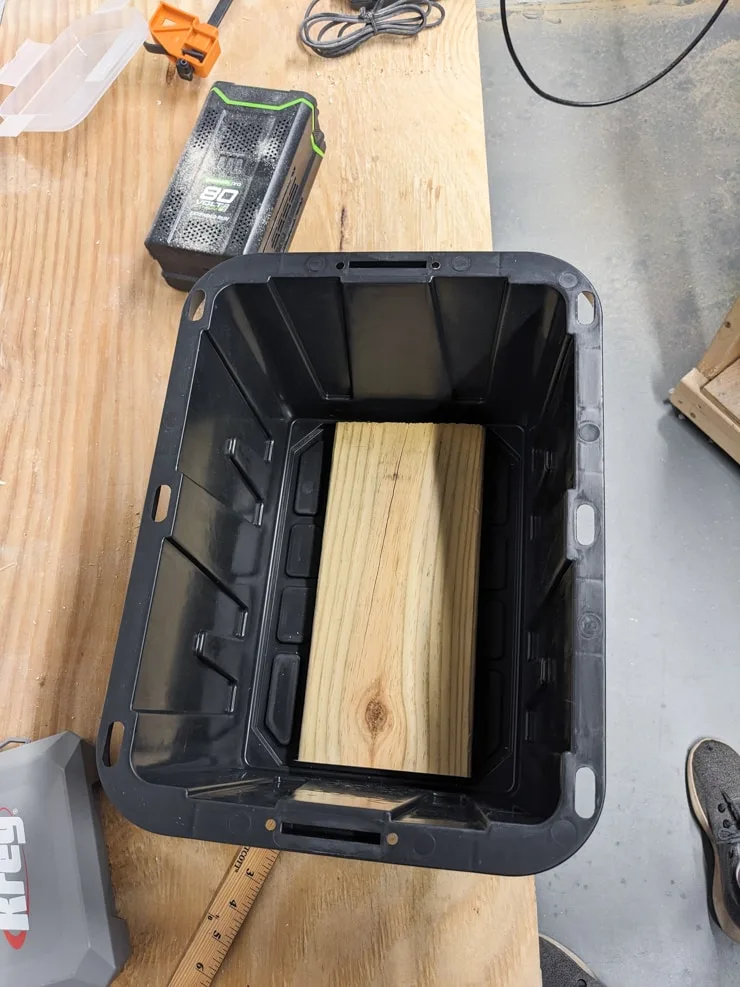

plastic utility box
piece of wood in the bottom of a plastic box
drilling a hole in a plastic utility box

Intake/Outtake

  1. With everything in place, I started working on the tubing. Use ½-inch clear plastic tubes to make connections going in and out of the pump.
  2. Determine the length of clear plastic tubing for each end of the pump. This will depend on your barrel’s location and where your irrigation tubing begins. My setup required 1-2 feet.
  3. Attach each clear plastic tubing section to the pump’s intake and outtake with small hose clamps.
  4. Attach a brass female hose fitting connector (½” barb x ¾” female hose) with another small hose clamp to the clear plastic hose on the barrel end.
  5. At this point, you could connect it to the rain barrel spigot. Or in my case, connecting directly to the garden hose inlet filter coming off the spigot.
  6. Do the same for the other plastic hose on the irrigation side. But this side will use a male brass hose fitting connector (½” barb x ¾” male hose).
battery on a plastic utility box
tubing and other parts on a table
clear tube with a brass fitting on it
battery on a plastic utility box

Irrigation Lines

Now you should consider trenching some of the irrigation pathways paths before setting up the hoses. It’s not necessary, but it can make the setup look cleaner. Dig about 4-6 inches deep along your desired water pump outtake path.

  1. Start setting up the irrigation. I recommend getting a starter kit with everything you need if you’re not experienced with garden irrigation systems.
  2. Connect another small filtration apparatus (included in kit) to the pump hose to ensure particles don’t get clogged downstream in the smaller tubing. Attach the filter to the male hose fitting and begin laying out the ½-inch black PVC along your garden beds. This hosing will feed into the small drip hoses if you choose that style.
  3. Some people use an arch over their beds. But I opted for a low-profile design. Attach the tubing to the garden bed sides with bolts and brackets.
  4. Lastly, connect and lay out your watering design. The garden drip or spray system is highly customizable and depends on your garden layout and plant placement. Follow the kit’s easy steps to connect each of the components for your hose formation.

Note that I found the small tube drip system didn’t adequately cover everything we had planted, so we switched to spray connectors using a larger ½-inch irrigation tube within the kit. Both could be good options depending on your setup.

trenching the irrigation tubes
clamping the tubes to the sides of the beds

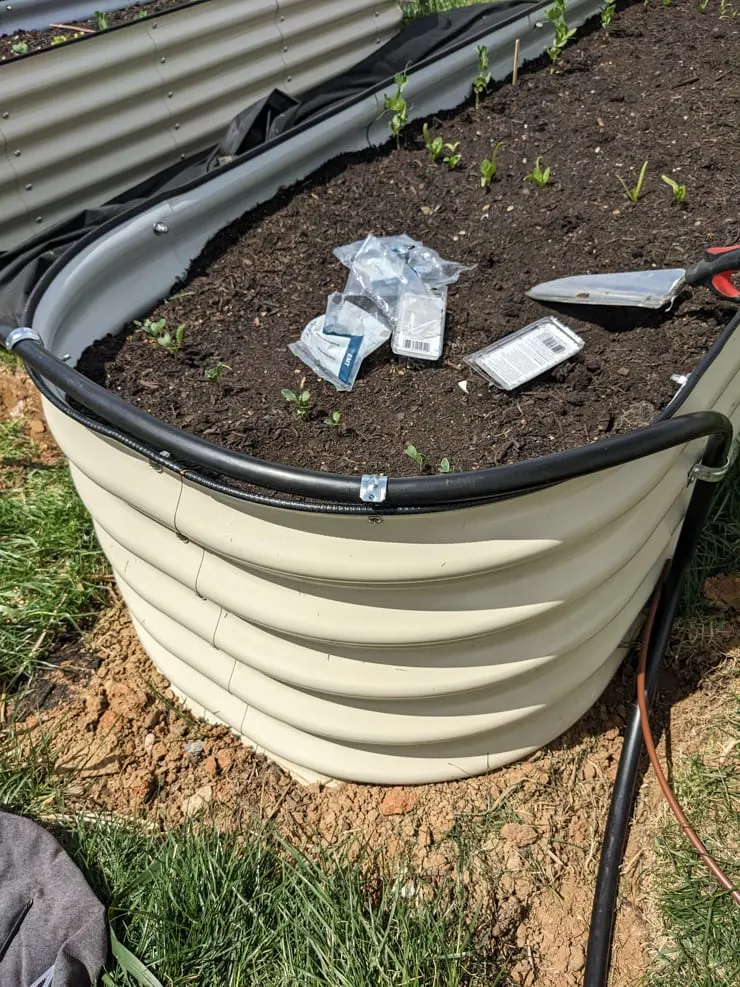

setting up an irrigation system on Vego garden beds
clamping the hose to the side of the bed
trenching the hose for the irrigation system
hole making tool
irrigation hose going down the middle of a garden bed
irrigation hose cap
hose connector

Like this? Check out my xTool M1 Laser-Cutting Machine Review!

Part 3: Electrical setup

Solar Panel

  1. Start by mounting the solar panel. Choose a location for your solar panel that receives adequate sunlight.
  2. Before attaching, measure out some red and black electrical wire for the distance from the panel to the mechanical box (assuming the panel will be mounted more than 2 feet from the box). Use waterproof heat shrink wire connectors to connect the panel wire to the new long wires.
  3. You can find cheap and easy mounting kits on Amazon if you are attaching directly to the roof. Add the mounting brackets to the panel and then screw them onto the roof.
  4. If possible, hide or protect the wires along the path back to the mechanical box. I was able to tuck them behind the corner paneling.
solar panel
back of a solar panel
back of a solar panel

Internal Wiring

  1. Next, measure and cut out about 6 inches of black and red wires to attach to the battery terminals. Strip the ends. Crimp attach an F2 spade wire terminal to the end of each wire. Attach each wire to the battery with the connector (red-to-red, black-to-black).
  2. Connect an in-line fuse off of the red wire (approximately 7.5 amp).
  3. Now attach these battery wires to the solar controller. This should be the middle 2 terminals indicated with a battery icon if you are using the same controller.
  4. If using a remote, measure and cut out 2 more red and black wires about 6-12 inches. Strip the ends of each. Attach these wires to the DC Input on the remote receiver. The opposite ends of these wires will go to the Load on the solar controller (indicated with a light bulb icon).
  5. Next, connect the pump to the remote receiver. If the pump wires are too short, consider attaching another 4-6 inches with waterproof heat shrink wire connectors. Connect the pump wires to the DC Output of the remote receiver.
  6. Lastly, connect the two solar panel wires to the solar controller on the left side with the panel indicators.
wires and solar battery
wire connector
solar battery
solar charge controller
inside the utility box
setup inside the utility box
hand holding a box with wires coming out of it

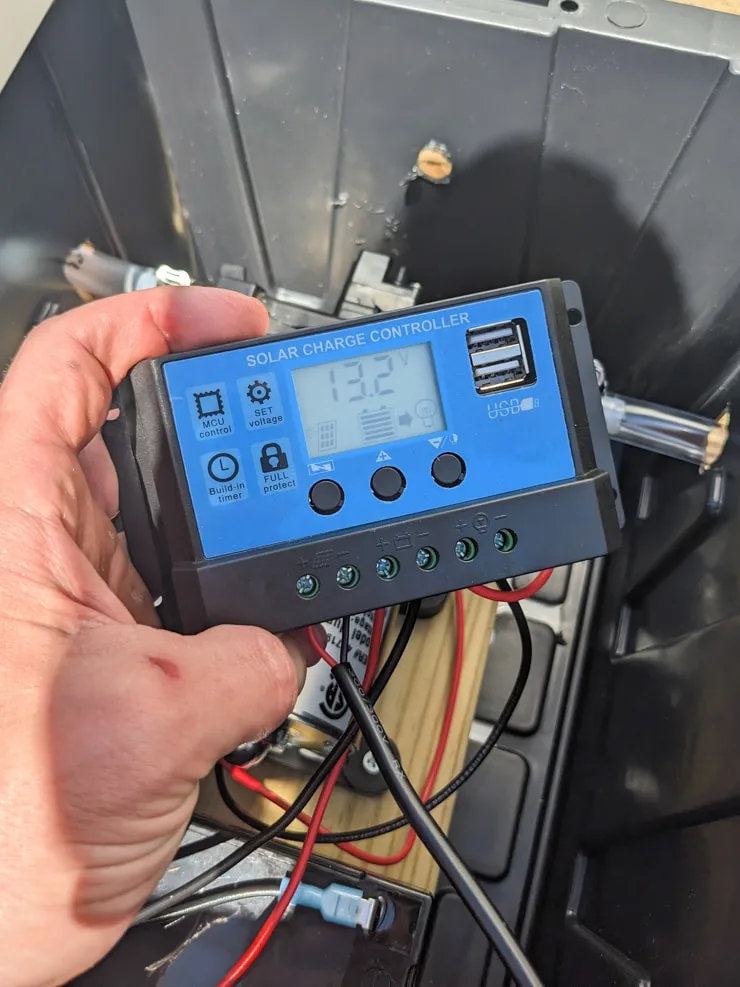

Solar Controller

When viewing the solar controller screen, you should see panel figures pointing toward the battery. This indicates that it is charging. You should also see a light bulb picture, showing that the load is connected (the pump). Here are a few pics.

solar charge controller
solar charge controller

Testing & Maintenance

This system is pretty set-it-and-forget-it. However, as with any mechanical system, you’ll need to do some maintenance to help with longevity and efficiency. Here are some tips on how to keep your system functioning optimally.

First, test the system. Turn on the pump and check to see that water is flowing from the rain barrel to the garden beds with enough pressure. You can adjust the flow rate and spray height to make sure that the water is reaching all of the spots you’d like them to reach. Make sure there are no leaks and that the hoses are not kinked or tangled.

Next you can adjust the settings—if necessary. The water pump and irrigation kit may have settings that you can adjust based on your needs. Check the manufacturer’s instructions to see if there are any settings related to flow rate, pressure, or energy use. Adjust these settings as needed to get the most out of your system.

Finally, consider maintenance. I recommend regularly inspecting the rain barrel, the pump, and the hoses for signs of damage. This is pretty easy to knock out whenever you’re filling your water can or doing regular garden stuff.

Always make sure to clean the filter or screen at the top of the barrel. You don’t want that stuff getting in the barrel and clogging things up. If any debris or sediment accumulates in the barrel or hoses, clean that out. Check the battery connections and the solar panel for any blockage or damage that may affect performance.

You also might need to perform some seasonal maintenance depending on your climate. For example, draining and cleaning the rain barrel before winter to prevent freezing or removing the solar panel during heavy snowfall. We have four seasons where we are, so that’s definitely something we’ll need to do.

screen on the top of a rain barrel

Wrapping up our solar-powered rain barrel irrigation system tutorial

Building our own DIY solar-powered rain barrel irrigation system was a really rewarding project for me to take on. With the steps provided in this guide, you can build a reliable and self-sufficient system that meets your gardening needs, too. Plus harnessing the power of the sun is just BADA*S, and now I want solar panels for everything.

DIY solar-powered rain barrel irrigation system
DIY solar-powered rain barrel irrigation system
DIY solar-powered rain barrel irrigation system
lettuce growing in a garden
DIY solar-powered rain barrel irrigation system
DIY solar-powered rain barrel irrigation system

Pin this tutorial!
